agree : another grammar engineering environment

A project to develop a system for processing DELPH-IN style TDL grammars within the .NET and Mono managed runtime environments.

UW CLMS thesis work of GlennSlayden.
M.S. and Ph.C. advisor EmilyBender.
Thesis reader StephanOepen.
Spencer Rarrick helped with MaxEnt parse selection, generation, and testing with Jacy.

citation:
Slayden, Glenn. “Array TFS storage for unification grammars.” (2012). [pdf]

agree is open-source software released under the MIT license.

For SVN access and project information, please visit http://www.agree-grammar.com.

Abstract

A new parser and generator for the DELPH-IN joint reference formalism

The Common Language Infrastructure (CLI, ECMA-335) is a modern standard for architecting extensible, platform-independent software. Well-known implementations include Mono and Microsoft’s .NET Framework. These managed runtime environments enjoy the robust support of actively developed software, and incorporate decades of research and best practice experience in systems architecture and developer productivity. An aim of this project is to explore the suitability of this platform for a new suite of tools for processing DELPH-IN style TDL (Krieger and Schäfer 1994) grammars.

Single-core performance having reached physical limits, the focus in high-performance computing now concerns multi-core processors. Accordingly, another goal of this project is to examine opportunities for concurrent programming in the processing of precision analytical grammars. This effort has led to the development of a low-lock, concurrent parse/generate chart which exploits new deep operating system support for scalable, fine-grained concurrency.

TFS Representation

Informed by Pereira (1985), Wroblewski (1987), Tomabechi (1991), and more recent work by van Lohuizen, a research goal is to investigate the efficiency–under the intensive demands that are characteristic of unification grammars–of array TFS storage, a representation that departs from the traditional allocation-per-node DAG approach. This internal DAG representation may minimize garbage collector activity in managed programming environments.

Capitalizing on the observation that, in DELPH-IN grammars, the appropriate features for every type are invariant, this approach stores each TFS’s nodes contiguously, indexed according to a hash that incorporates its hosting feature. Combined with careful application of C# value types, this approach has demonstrated excellent parsing and generation performance in the .NET managed runtime environment.

Project Status

The system supports both parsing and generation. It has been tested with the English Resource Grammar (Flickinger 2002), Jacy grammar of Japanese (Siegel and Bender 2002), and other Matrix grammars (Bender et al. 2002), notably a medium-small grammar of Thai (unpublished). Exact derivations have been validated versus PET for Redwoods (Oepen et al. 2000) corpora.

As the complexity of the agree tool suite has increased in support of diverse analysis tasks, application maintainability, configuration, and management have become key issues. In response, in 2012 the system was rearchitected as a set of loosely-coupled functors with which the linguist-user composes ad-hoc linguistic processing pipelines via XAML markup. Binding together functors yields a customized, reusable composite functor which, when applied to an input, produces a complex and/or nested sequence of live monads (non-reusable workers). Each monad represents a concurrent push-based processing stream implementing some part of the fanout or fork/join signature required by the originally composed task.

Type System

Robustly read, validate, and tokenize TDL grammars, providing precise indication of syntax errors;
Build the type system and efficiently calculate the greatest lower bound closure;
Internal representation of typed feature structures according to “Array TFS Storage for Unification Grammars” (Slayden 2012)

Unification Engine

Low-lock concurrency at the single-unification level
Fallback unification (Slayden 2012) which simplifies the standard method (Tomabechi 1991, 1992) by eliminating the COMP-ARC list data structure.

Morpholexical Analysis

Externally-configurable tokenization supports flexible input: arbitrarily overlapping tokens in a single hypothesis, or distinct input hypotheses
Stand-off input token format with no whitespace assumptions
Inflection at any position of multi-word lexical entries
LKB tokenization options: RegEx lexrule, irregs.tab
Concurrent analysis (per input token)

DELPH-IN Compliant Preprocessing

REPP
Integrated HMM trigram POS tagger
Lattice-based token mapping (Adolphs et al. 2008)
Lattice-based lexical filtering (ibid.)
Chart dependencies filter (Kiefer et al. 1999)

Concurrent Parse-Generate Chart

Lock-free coordination between active and passive edges via atomic (interlocked) CPU instructions
Single unified chart is shared between parser and generator, abstracting only the difference in edge proximity condition
Capitalizing on new OS support for lightweight tasks scheduled with sophisticated hill-climbing, work-stealing, and load-balancing, a new, non-blocking unification chart parser works by constructing a graph of fully asynchronous fine-grained match/unify tasks.
Rule pre-filter (Kiefer et al. 1999)
Additionally, the following grammar-opt-in techniques developed in the DELPH-IN community and elsewhere: KEY-daughter first, Quick-check (Malouf et al. 2000), spanning-only rules, and daughter ARGS pruning.
Direct daughter unify with skeleton completion: parts of the rule mother TFS which are outside of her rule daughter’s coreference extent are only built upon successful daughter unification.
Ambiguity packing with exhaustive unpacking (Oepen and Carroll, 2000)

Maxent Parse Selection

Read (e.g.) redwoods.mem model
Score n-best derivations without unpacking
future work: selective unpacking

MRS

In anticipation of convenient MRS re-writing and SEM-I transfer, a rich MRS suite of interconnected C# objects has been developed.
This MRS suite is extracted from the higher-performance parse/generation representation.
DELPH-IN compliant VPM and SEM-I processing.

Concurrent Tactical Realization (Generation)

LE skolemization permuted across (possibly repeated) EPs in the input MRS and/or lexical entries.
Rule skolemization and rule avoidance by C-CONT evaluation
MTR trigger rule regex evaluation for vacuous lexical entry insertion
‘gen-ignore-rules’, ‘duplicate-lex-ids’, etc. config settings support
KEY-driven daughter instantiation
Uses the same lock-free chart and concurrent agenda control as the parser
Derivation read-out with reverse morphology reconstitution
index accessibility filtering (Oepen and Carroll 2005)
Chart cells indexed (separately, for active vs. passive) by number of EPs covered.

Application Notes

Centralize grammar engineering tasks in a single software environment
To facilitate MT engineering, the engine supports working with multiple loaded grammars (see images below)
Platform independent command processing enables console-based interactive use (i.e. on Mono)
Built-in support for the standard [incr tsdb()] (Oepen and Carroll 2000) testsuite database format
As with most CLR software, the same executable binary should run on any combination of 32 or 64-bit Mono or .NET

WPF Client Application

Display and interact with feature structures in a style inspired by LUI
Syntax tree display

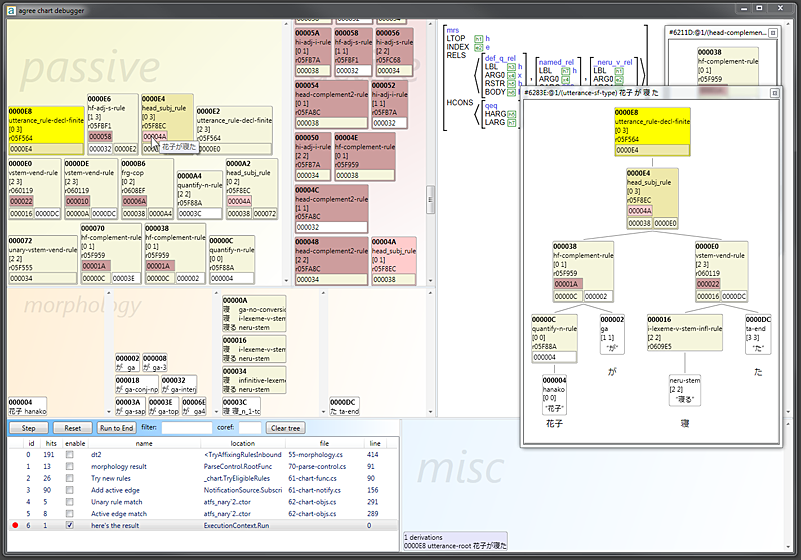

Parse chart display
Note: WPF support will not be available on Mono

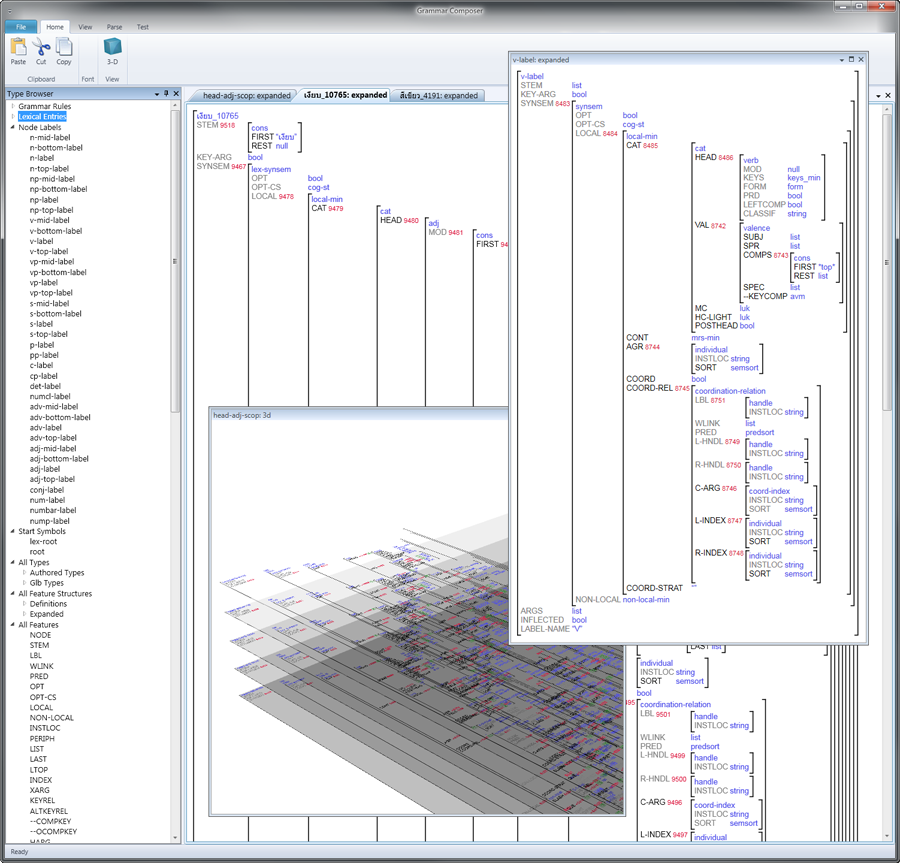

The project is also investigating novel visualization technologies for grammar engineering and pedagogical use. Shown below is a three-dimensional view of an authored constraint definition superimposed over its expanded feature structure. Because the structures are aligned, there are spaces in the definition to account for constraints supplied by other structures. Multi-layer views can show the contributions from each definition which make a feature structure well-formed.

The view can be manipulated on any axis to freely explore relationships amongst the authored rules. Although the WPF environment makes such renderings easy to implement, an ongoing challenge is to find a visual presentation with the simplicity and elegance requisite for truly facilitating linguistic insight.

References

Adolphs, Peter; Oepen, Stephan; Callmeier, Ulrich; Crysmann, Berthold; Flickinger, Dan & Kiefer, Bernd. 2008. Some Fine Points of Hybrid Natural Language Parsing. In: Proceedings of the Sixth International Language Resources and Evaluation (LREC-2008). Marrakech, Morocco.

Emily M. Bender, Dan Flickinger, and Stephan Oepen. 2002. The grammar matrix: an open-source starter-kit for the rapid development of cross-linguistically consistent broad-coverage precision grammars. in Proceedings of the 2002 workshop on Grammar engineering and evaluation - Volume 15 (COLING-GEE ‘02), Vol. 15. Association for Computational Linguistics, Stroudsburg, PA, USA, 1-7.

Ulrich Callmeier. 2001. Efficient Parsing with Large-Scale Unification Grammars. MA Thesis, Universität des Saarlandes - Fachrichtung Informatik.

Ulrich Callmeier. 2000. PET: a platform for experimentation with efficient HPSG processing techniques. Natural Language Engineering 6(1): 99-107.

Dan Flickinger. 2002. On building a more efficient grammar by exploiting types. Natural Language Engineering, 6, pp 15-28.

Hans-Ulrich Krieger and Ulrich Schäfer. 1994. TDL: a type description language for constraint-based grammars. in Proceedings of the 15th conference on Computational linguistics - Volume 2 (COLING ‘94), Vol. 2. Association for Computational Linguistics, Stroudsburg, PA, USA, 893-899.

Bernd Kiefer, Hans-Ulrich Krieger, John Carroll, and Rob Malouf. 1999. A Bag of Useful Techniques for Efficient and robust Parsing. In Proceedings of the 37th annual meeting of the Association for Computational Linguistics. 473-480

Robert Malouf, John Carroll, and Ann Copestake. 2000. Robert Malouf, John Carroll, and Ann Copestake. 2000. Efficient feature structure operations without compilation. Natural Language Engineering, 1(1):1-18.

Stephan Oepen and John Carroll. 2000. Parser engineering and performance profiling. Natural Language Engingeering 6, 1 (March 2000), 81-97.

Stephan Oepen, Kristina Toutanova, Stuart Shieber, Christopher Manning, Dan Flickinger, and Thorsten Brants. 2002. The LinGO Redwoods Treebank: Motivation and preliminary applications. in Proceedings of the 19th International Conference on Computational Linguistics (COLING 2002), pages 1253–7, Taipei, Taiwan.

Fernando C. N. Pereira. 1985. A structure-sharing representation for unification-based grammar formalisms. In Proceedings of the 23rd Annual Meeting of the Association for Computational Linguistics. Chicago, IL, 8-12 July 1985, pages 137-144.

Melanie Siegel and Emily M. Bender (2002): Efficient Deep Processing of Japanese. In Proceedings of the 3rd Workshop on Asian Language Resources and International Standardization. COLING 2002 Post-Conference Workshop. Taipei, Taiwan.

Hideto Tomabechi. 1991. Quasi-destructive graph unification. In Proceedings of the 29th Annual Meeting of the Association for Computational Linguistics, Berkeley, CA.

Hideto Tomabechi. 1992. Quasi-destructive graph unifications with structure-sharing. In Proceedings of the 15th International Conference on Computational Linguistics (COLING-92), Nantes, France.

Hideto Tomabechi. 1995. Design of efficient unification for natural language. Journal of Natural Language Processing, 2(2):23-58.

Marcel P. van Lohuizen. 1999. Parallel processing of natural language parsers. In PARCO ‘99.

Marcel P. van Lohuizen. 2000. Exploiting parallelism in unification-based parsing. In Proceedings of the Sixth International Workshop on Parsing Technologies (IWPT 2000), Trento, Italy.

Marcel P. van Lohuizen. 2000. Memory-efficient and Thread-safe Quasi-Destructive Graph Unification. In Proceedings of the 38th Meeting of the Association for Computational Linguistics, Hong Kong, China, 2000.

Marcel P. van Lohuizen. 2001. A generic approach to parallel chart parsing with an application to LinGO. In Proceedings of the 39th Meeting of the Association for Computational Linguistics, Toulouse, France.

David A. Wroblewski. 1987. Nondestructive graph unification. In Proceedings of the 6th National Conference on Artificial Intelligence (AAAI-87), 582-589. Morgan Kaufmann.
